C55GF 4BTA3.9-G2 Rated Cummins 40kW Diesel Generator

Description

C55GF Rated Cummins 40kw Diesel Generator is a powerful and reliable solution, powered by a Cummins 4BTA3.9-G2 4-cylinder in-line diesel engine, built with a compact design, facilitating easy installation and maintenance:

Features of A Cummins 40kW Diesel Generator

1. Power Output:

• AC220/380, 3-phase, 0.8 pf, 40 kW/ 50 kVA, 75.97 Amps
• AC230/400, 3-phase, 0.8 pf, 40 kW/ 50 kVA, 72.17 Amps
• AC240/415, 3-phase, 0.8 pf, 40 kW/ 50 kVA, 69.56 Amps

2. Powerful Diesel Engine:

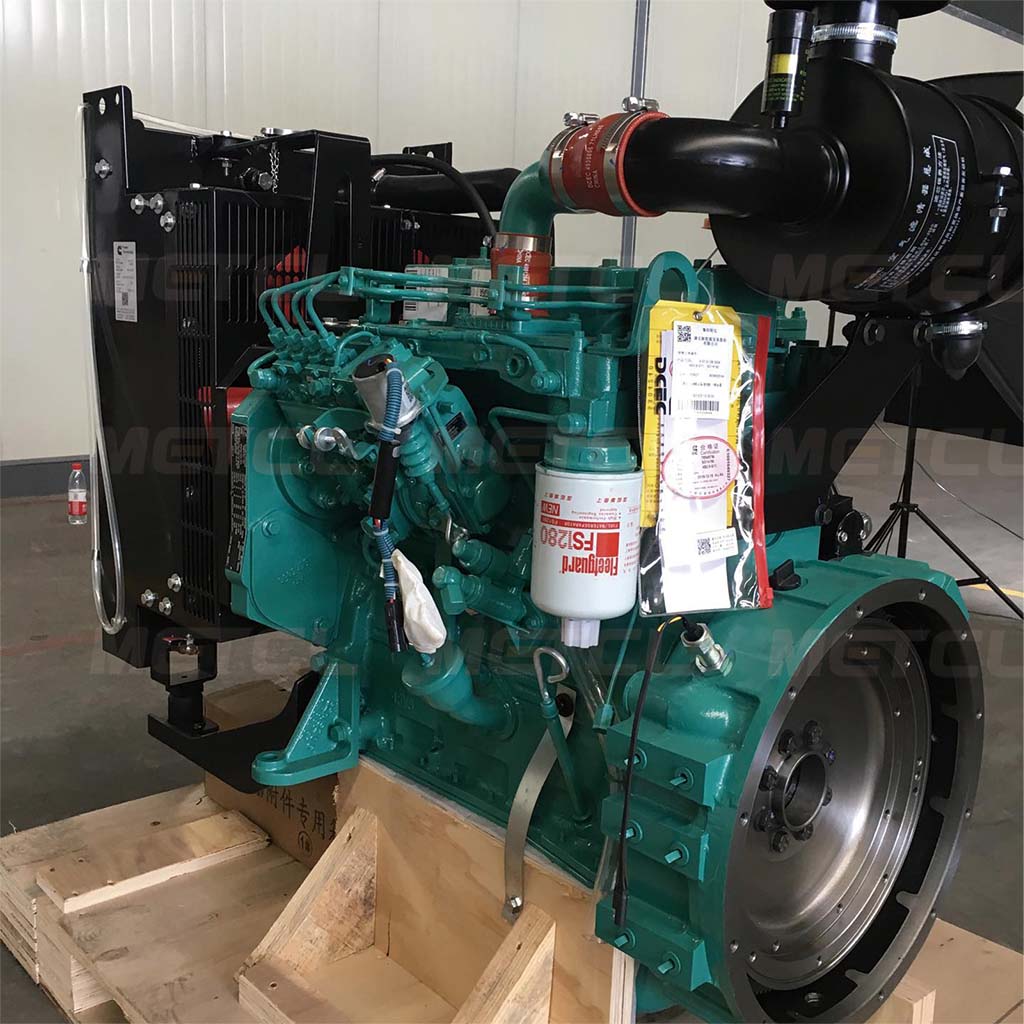

• Cummins 4BTA3.9-G2 diesel engine
• Engine Power: 55 kW of standby power, 50 kW of prime power at 1500 RPM
• Engine type: 4-cycle; In-line; 4-Cylinder Diesel; Turbocharged;
• Engine displacement: 3.9 Liter; Compression Ratio: 17.3:1

3. AC Alternator:

• Alternator brand: STAMFORD AVK; Mecc Alte; Leroy-Somer
• AVR Controlled Rating 3ph 1500 RPM
• Standard Brushless self-exciting with AVR and standard 12-lead winding.

4. Advanced Control Systems:

• Digital voltage regulation for stable power output.
• Manual/Auto dual operation model for a seamless transition during power outages.
• User-friendly control interfaces for easy monitoring and management.

5. Cooling System:

This Cooling system includes a high-capacity radiator, a coolant circulation pump, and cooling fans. By effectively dissipating heat, the cooling system enhances the rated Cummins 40kW Diesel Generator performance and prevents overheating, even during extended periods of operation.

• Original Cummins cooling radiator with horses
• Ambient TEMP≤40°C
• OP Pressure ≤127KPa

6. Fuel Efficiency:

• Fuel Pump System: Cummins BYC A Pump with Electronic Governor
• Optimized for high fuel efficiency to reduce operational costs.
• Fuel consumption ratio 100% Prime Power 50 kW at 12.9 Litre/h
• Fuel consumption ratio 75% Prime Power 37.5 kW at 10.0 Litre/h
• Fuel consumption ratio 50% Prime Power 25 kW at 7.0 Litre/h
• Fuel consumption ratio 25% Prime Power 12.5 kW at 4.2 Litre/h

7. Assembly & Finish:

• Assembly: Full torsion analysis and Anti-vibration pads to minimize vibration and sound levels
• Grit blast cleaning and coating. Finished with a special three-layer painting, which provides an excellent corrosion-resistant surface and lasts long.

8. Warranty & Service:

• 12 months or 1000 hours global warranty.
• Genuine original Cummins spare parts
• 7/24 hours Troubleshoot Service: Our expert Parts and Technician team is ready and waiting to answer any questions or concerns you might have.

9. Compliance & Standards:

• ISO8528, GB/T2820, ISO3046, BS4999, BS5514, BS5000, EN12601:2001, EN60034- 22:1997, EN60204-1:2006, ISO9001:2000 Quality Management & ISO14001:2004, SGS

10. Load Testing & Package:

• C55GF rated Cummins 40kW Diesel Generator with rigorous testing before delivery, including 25% load, 50% load, 75% load, 100% load, 110% load
• All protection functions testing including over-speed stop, high water temp, low oil pressure, battery charging failure, emergency stop, etc.

11. Versatility:

• Ideal for a wide range of applications including hospitals, data centers, industrial plants, and commercial facilities.
• Capable of operating under various environmental conditions.

12. Safety and Protection:

• Equipped with multiple safety features such as overload protection, low oil shutdown, and emergency stop.
• Designed to meet international safety standards.

13. Remote Monitoring:

• Capable of remote monitoring and control, allowing operators to manage the generator from a distance.
• Supports integration with building management systems (BMS) for enhanced oversight.

14. Customizable Options:

• Available with various optional features and accessories to tailor the generator to specific requirements.
• Options include weatherproof enclosures, extended fuel tanks, and more.

These features make the C55GF Cummins 40kW Diesel Generator a reliable, efficient, and versatile choice for providing backup power in critical applications.
