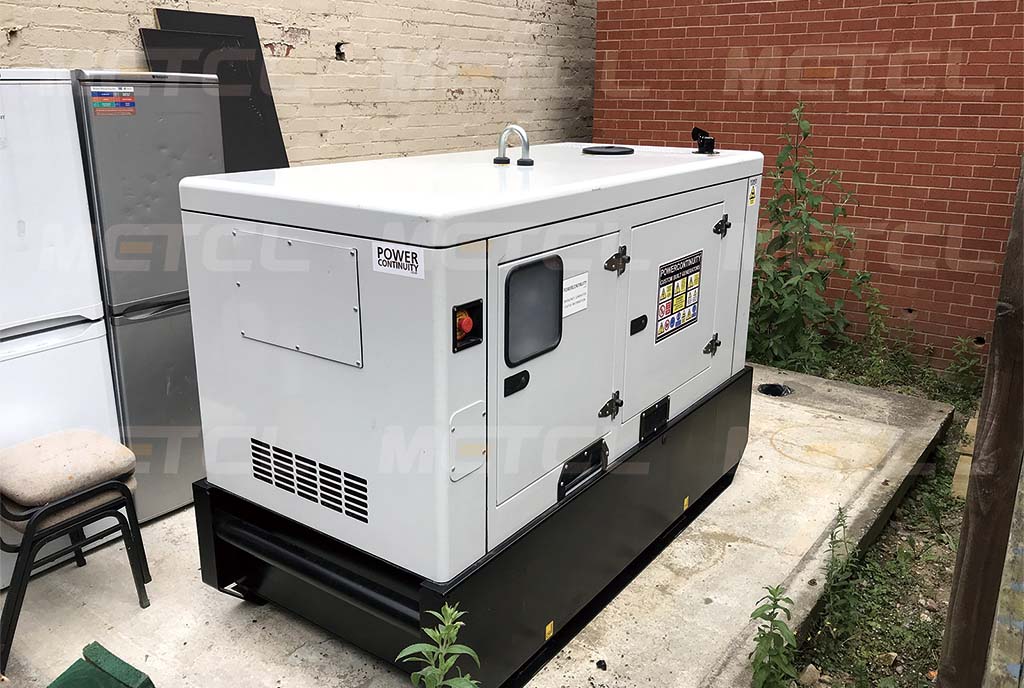

C28GFS-1 4B3.9-G1 Soundproof 20 kw Cummins Generator

Description

C28GFS-1 Soundproof 20 kW Cummins Generator is a powerful and reliable solution, powered by a Cummins 4B3.9-G1 4-cylinder in-line diesel engine, built with a compact design, facilitating easy installation and maintenance:

Features of A Soundproof 20 kW Cummins Generator

1. Power Output:

• AC220/380, 3-phase, 0.8 pf, 20 kW / 25 kVa  38 Amps
• AC230/400, 3-phase, 0.8 pf, 20 kW / 25 kVa  36 Amps
• AC240/415, 3-phase, 0.8 pf, 20 kW / 25 kVa  34.8 Amps

2. Powerful Diesel Engine:

• Cummins 4B3.9-G1 diesel engine
• Engine Power: 27 kW of standby power, 24 kW of prime power at 1500 RPM
• Engine type: 4-cycle; In-line; 4-Cylinder Diesel; Turbocharged;
• Engine displacement: 3.9 Liter; Compression Ratio: 18.0:1

3. AC Alternator:

• Alternator brand: STAMFORD AVK; Mecc Alte; Leroy-Somer
• AVR Controlled Rating 3ph 1500 RPM
• Standard Brushless self-exciter with AVR and standard 12-lead winding.

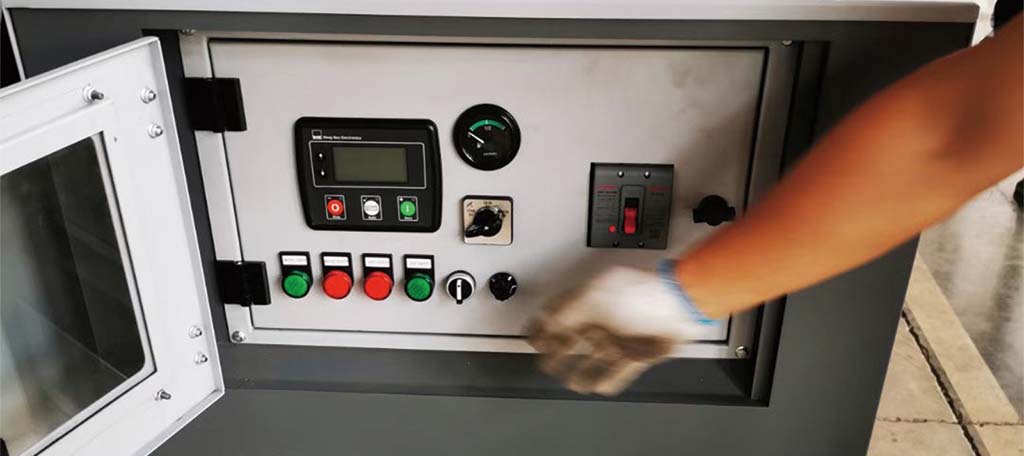

4. Advanced Control Systems:

• Digital voltage regulation for stable power output.
• Manual/Auto dual operation model for a seamless transition during power outages.
• User-friendly control interfaces for easy monitoring and management.

5. Cooling System:

This Cooling system includes a high-capacity radiator, a coolant circulation pump, and cooling fans. By effectively dissipating heat, the cooling system enhances the Enclosed Soundproof 20 kW Cummins Generator performance and prevents overheating, even during extended periods of operation.

• Original Cummins cooling radiator with horses
• Ambient TEMP≤40°C
• OP Pressure ≤127KPa

6. Fuel Efficiency:

• Fuel Pump System: Cummins BYC A Pump with Mechanical Governor
• Optimized for high fuel efficiency to reduce operational costs.
• Fuel consumption ratio 100% Prime Power 24 kW at 7.1 Litre/h
• Fuel consumption ratio 75% Prime Power 18 kW at 5.7 Litre/h
• Fuel consumption ratio 50% Prime Power 12 kW at 4.3 Litre/h
• Fuel consumption ratio 25% Prime Power 6 kW at 2.8 Litre/h

7. Assembly & Finish:

• Assembly: Full torsion analysis and Anti-vibration pads to minimize vibration and sound levels
• Grit blast cleaning and coating. Finished with a special three-layer painting, which provides an excellent corrosion-resistant surface and lasts long.

8. Warranty & Service:

• 12 months or 1000 hours global warranty.
• Genuine original Cummins spare parts
• 7/24 hours Troubleshoot Service: Our expert Parts and Technician team is ready and waiting to answer any questions or concerns you might have.

9. Compliance & Standards:

• ISO8528, GB/T2820, ISO3046, BS4999, BS5514, BS5000, EN12601:2001, EN60034- 22:1997, EN60204-1:2006, ISO9001:2000 Quality Management & ISO14001:2004, SGS

10. Load Testing & Package:

• C28GFS-1 Soundproof 20 kW Cummins Generator with rigorous testing before delivery, including 25% load, 50% load, 75% load, 100% load, 110% load
• All protection functions testing including over-speed stop, high water temp, low oil pressure, battery charging failure, emergency stop, etc.

11. Versatility:

• Ideal for a wide range of applications including hospitals, data centers, industrial plants, and commercial facilities.
• Capable of operating under various environmental conditions.

12. Safety and Protection:

• Equipped with multiple safety features such as overload protection, low oil shutdown, and emergency stop.
• Designed to meet international safety standards.

13. Remote Monitoring:

• Capable of remote monitoring and control, allowing operators to manage the generator from a distance.
• Supports integration with building management systems (BMS) for enhanced oversight.

14. Customizable Options:

• Available with various optional features and accessories to tailor the generator to specific requirements.
• Options include weatherproof enclosures, extended fuel tanks, and more.

These features make the C28GFS-1 Soundproof 20 kW Cummins Generator a reliable, efficient, and versatile choice for providing backup power in critical applications.
