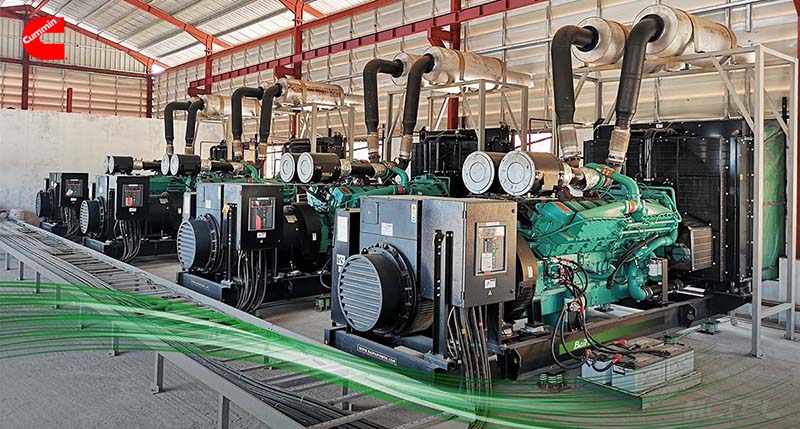

C1650GF KTA50-GS8 Prime Cummins 1200 kW diesel generator

Description

The Cummins 1200 kW diesel generator is a powerful and reliable solution, built with a compact and sturdy design, facilitating easy installation and maintenance. It is specifically designed to meet the demands of various large-scale applications, such as industrial facilities, data centers, hospitals, and commercial establishments. Here’s a detailed description of its features and capabilities:

Features of A Cummins 1200 kW Diesel Generator

1. Power Output:

• AC220/380V, 3-phase, 0.8 pf, 1200 kW/ 1500 kVA, 2279.1 Amps
• AC230/400V, 3-phase, 0.8 pf, 1200 kW/ 1500 kVA, 2165.1 Amps
• AC240/415V, 3-phase, 0.8 pf, 1200 kW/ 1500 kVA, 2086.8 Amps

2. Powerful Diesel Engine:

• Cummins engine KTA50-GS8 is designed for high performance and durability.
• Engine Power: 1429 kW of standby power, and 1287 kW of prime power.
• Engine type: 4-cycle; 60° Vee; 16-Cylinder Diesel; Turbocharged & Low Temp; Aftercooled
• Engine displacement: 50.3 Liter; Compression Ratio: 14.9:1

3. AC Alternator:

• Alternator brand: STAMFORD AVK; Mecc Alte; Leroy-Somer
• AVR Controlled Rating 3ph 1500 RPM
• Standard PMG exciter and standard 12-lead winding.

4. Advanced Control Systems:

• Digital voltage regulation for stable power output.
• Manual/Auto dual operation model for a seamless transition during power outages.
• User-friendly control interfaces for easy monitoring and management.

5. Cooling System:

This Cooling system includes a high-capacity radiator, a coolant circulation pump, and cooling fans. By effectively dissipating heat, the cooling system enhances the Cummins 1200 kW diesel generator performance and prevents overheating, even during extended periods of operation.

• Original Cummins cooling radiator with horses (S/N: 4296853)
• Ambient TEMP≤40°
• OP Pressure ≤127KPa

6. Fuel Efficiency:

• Optimized for high fuel efficiency to reduce operational costs.
• Complies with stringent emission standards, making it environmentally friendly.
• 100% Prime Power 1287 kW @ 309 Litre/h (U.S. 81.6 Gal/h)
• 75% Prime Power 965 kW @ 238 Litre/h (U.S. 62.8 Gal/h)
• 50% Prime Power 644 kW @ 167 Litre/h (U.S. 44.1 Gal/h)
• 25% Prime Power 322 kW @ 88 Litre/h (U.S. 23.3 Gal/h)

7. Assembly & Finish:

• Assembly: Full torsion analysis and Anti-vibration pads to minimize vibration and sound levels
• Grit blast cleaning and coating. Finished with a special three-layer painting, which provides an excellent corrosion-resistant surface and lasts long.

8. Warranty & Service:

• 12 months or 1000 hours global warranty.
• Genuine original Cummins spare parts
• 7/24 hours Troubleshoot Service: Our expert Parts and Technician team is ready and waiting to answer any questions or concerns you might have.

9. Compliance & Standards:

• ISO8528, GB/T2820, ISO3046, BS4999, BS5514, BS5000, EN12601:2001, EN60034- 22:1997, EN60204-1:2006, ISO9001:2000 Quality Management & ISO14001:2004, SGS

10. Load Testing & Package:

• Cummins 1200 kW diesel generator with rigorous testing before delivery, including 25% load, 50% load, 75% load, 100% load, 110% load
• All protection functions testing including over-speed stop, high water temp, low oil pressure, battery charging failure, emergency stop, etc.

11. Versatility:

• Ideal for a wide range of applications including hospitals, data centers, industrial plants, and commercial facilities.
• Capable of operating under various environmental conditions.

12. Safety and Protection:

• Equipped with multiple safety features such as overload protection, low oil shutdown, and emergency stop.
• Designed to meet international safety standards.

13. Remote Monitoring:

• Capable of remote monitoring and control, allowing operators to manage the generator from a distance.
• Supports integration with building management systems (BMS) for enhanced oversight.

14. Customizable Options:

• Available with various optional features and accessories to tailor the generator to specific requirements.
• Options include weatherproof enclosures, extended fuel tanks, and more.

These features make the Cummins 1200 kW diesel generator a reliable, efficient, and versatile choice for providing backup power in critical applications.
