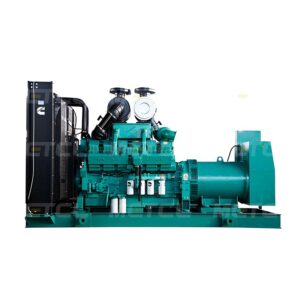

C1100GF KTA38-G5 Prime 1000 kVA Cummins Diesel Generator

Description

C1100GF KTA38-G5 Prime 1000 kVA Cummins Diesel Generator is a powerful and reliable solution, built with a compact and sturdy design, facilitating easy installation and maintenance. It is specifically designed to meet the demands of various large-scale applications, such as industrial facilities, data centers, hospitals, and commercial establishments. Here’s a detailed description of its features and capabilities:

Features of A Prime 1000 kVA Cummins Diesel Generator

1. Power Output:

• AC220/380, 3-phase, 0.8 pf, 800 kW/ 1000 kVa, 1382.6 Amps
• AC230/400, 3-phase, 0.8 pf, 800 kW/ 1000 kVa, 1440.0 Amps
• AC240/415, 3-phase, 0.8 pf, 800 kW/ 1000 kVa, 1266.0 Amps

2. Powerful Diesel Engine:

• Cummins engine KTA38-G5 is designed for high performance and durability.
• Engine Power: 970 kW of standby power 880 kW at 1500 RPM
• Engine type: 4-cycle; 60° Vee; 12-Cylinder Diesel; Turbocharged; Aftercooled
• Engine displacement: 37.8 Liter; Compression Ratio: 13.9:1

3. AC Alternator:

• Alternator brand: STAMFORD AVK; Mecc Alte; Leroy-Somer
• AVR Controlled Rating 3ph 1500 RPM
• Standard PMG exciter and standard 12-lead winding.

4. Advanced Control Systems:

• Digital voltage regulation for stable power output.
• Manual/Auto dual operation model for a seamless transition during power outages.
• User-friendly control interfaces for easy monitoring and management.

5. Cooling System:

This Cooling system includes a high-capacity radiator, a coolant circulation pump, and cooling fans. By effectively dissipating heat, the cooling system enhances the Prime 1000 kVA Cummins Diesel Generator performance and prevents overheating, even during extended periods of operation.

• Original Cummins cooling radiator with horses
• Ambient TEMP≤50°
• OP Pressure ≤127KPa

6. Fuel Efficiency:

• Optimized for high fuel efficiency to reduce operational costs.
• Complies with stringent emission standards, making it environmentally friendly.
• 100% Prime Power 880 kW @ 209 Litre/h (U.S. 55.1 Gal/h)
• 75% Prime Power 660 kW @ 161 Litre/h (U.S. 42.5 Gal/h)
• 50% Prime Power 440 kW @ 137 Litre/h (U.S. 29.9 Gal/h)
• 25% Prime Power 220 kW @ 65 Litre/h (U.S. 17.3 Gal/h)

7. Assembly & Finish:

• Assembly: Full torsion analysis and Anti-vibration pads to minimize vibration and sound levels
• Grit blast cleaning and coating. Finished with a special three-layer painting, which provides an excellent corrosion-resistant surface and lasts long.

8. Warranty & Service:

• 12 months or 1000 hours global warranty.
• Genuine original Cummins spare parts
• 7/24 hours Troubleshoot Service: Our expert Parts and Technician team is ready and waiting to answer any questions or concerns you might have.

9. Compliance & Standards:

• ISO8528, GB/T2820, ISO3046, BS4999, BS5514, BS5000, EN12601:2001, EN60034- 22:1997, EN60204-1:2006, ISO9001:2000 Quality Management & ISO14001:2004, SGS

10. Load Testing & Package:

• Prime 1000 kVA Cummins Diesel Generator with rigorous testing before delivery, including 25% load, 50% load, 75% load, 100% load, 110% load
• All protection functions testing including over-speed stop, high water temp, low oil pressure, battery charging failure, emergency stop, etc.

11. Versatility:

• Ideal for a wide range of applications including hospitals, data centers, industrial plants, and commercial facilities.
• Capable of operating under various environmental conditions.

12. Safety and Protection:

• Equipped with multiple safety features such as overload protection, low oil shutdown, and emergency stop.
• Designed to meet international safety standards.

13. Remote Monitoring:

• Capable of remote monitoring and control, allowing operators to manage the generator from a distance.
• Supports integration with building management systems (BMS) for enhanced oversight.

14. Customizable Options:

• Available with various optional features and accessories to tailor the generator to specific requirements.
• Options include weatherproof enclosures, extended fuel tanks, and more.

These features make the Prime 1000 kVA Cummins Diesel Generator a reliable, efficient, and versatile choice for providing backup power in critical applications.
