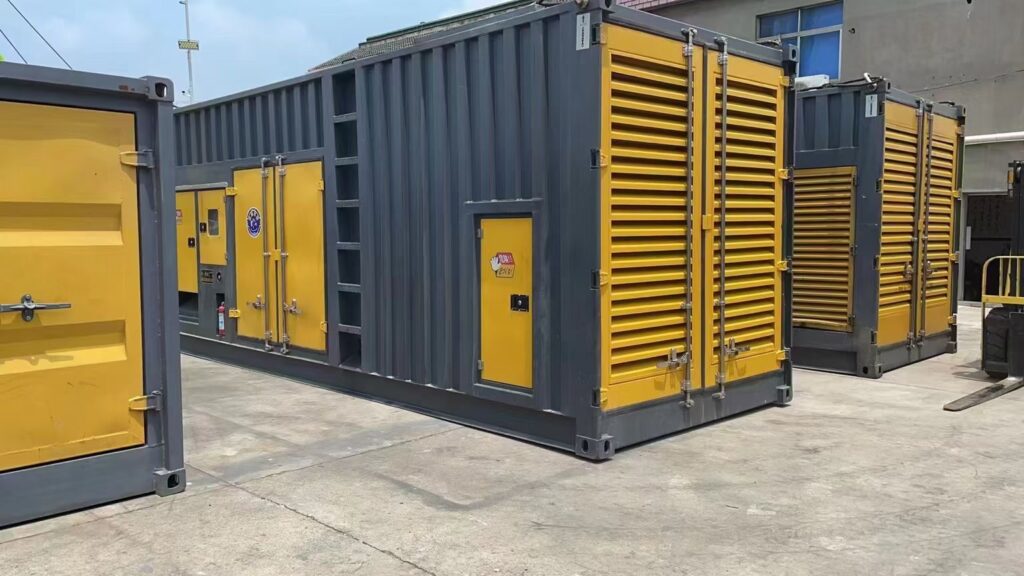

C1100GFS KTA38-G5 Containerized 1000 kVA Generator Cummins

Description

C1100GFS KTA38-G5 Containerized 1000 kVA Generator Cummins is a powerful and reliable solution, built with a 20Feet or 40Feet ISO Container, facilitating easy installation and maintenance. It is specifically designed to meet the demands of various large-scale applications, such as industrial facilities, data centers, hospitals, and commercial establishments. :

Features of A Containerized 1000 kVA Generator Cummins

1. Power Output:

• AC220/380, 3-phase, 0.8 pf, 800 kW/ 1000 kVa, 1382.6 Amps
• AC230/400, 3-phase, 0.8 pf, 800 kW/ 1000 kVa, 1440.0 Amps
• AC240/415, 3-phase, 0.8 pf, 800 kW/ 1000 kVa, 1266.0 Amps

2. Powerful Diesel Engine:

• Cummins engine KTA38-G5 is designed for high performance and durability.
• Engine Power: 970 kW of standby power 880 kW at 1500 RPM
• Engine type: 4-cycle; 60° Vee; 12-Cylinder Diesel; Turbocharged; Aftercooled
• Engine displacement: 37.8 Liter; Compression Ratio: 13.9:1

3. AC Alternator:

• Alternator brand: STAMFORD AVK; Mecc Alte; Leroy-Somer
• AVR Controlled Rating 3ph 1500 RPM
• Standard PMG exciter and standard 12-lead winding.

4. Advanced Control Systems:

• Digital voltage regulation for stable power output.
• Manual/Auto dual operation model for a seamless transition during power outages.
• User-friendly control interfaces for easy monitoring and management.

5. Cooling System:

This Cooling system includes a high-capacity radiator, a coolant circulation pump, and cooling fans. By effectively dissipating heat, the cooling system enhances the Prime 1000 kVA Generator Cummins performance and prevents overheating, even during extended periods of operation.

• Cummins Authorized cooling radiator with horses
• Ambient TEMP≤50°
• OP Pressure ≤127KPa

6. Fuel Efficiency:

• Optimized for high fuel efficiency to reduce operational costs.
• Complies with stringent emission standards, making it environmentally friendly.
• Optimized for high fuel efficiency to reduce operational costs.
• Complies with stringent emission standards, making it environmentally friendly.
• 100% Prime Power 880 kW @ 209 Litre/h (U.S. 55.1 Gal/h)
• 75% Prime Power 660 kW @ 161 Litre/h (U.S. 42.5 Gal/h)
• 50% Prime Power 440 kW @ 137 Litre/h (U.S. 29.9 Gal/h)
• 25% Prime Power 220 kW @ 65 Litre/h (U.S. 17.3 Gal/h)

7. Assembly & Finish:

• Assembly: Full torsion analysis and Anti-vibration pads to minimize vibration and sound levels
• Grit blast cleaning and coating. Finished with a special three-layer painting, which provides an excellent corrosion-resistant surface and lasts long.
• ISO Standard 20 Feet or 40 Feet container enclosure is easier to transport and install.

8. Warranty & Service:

• 12 months or 1000 hours global warranty.
• Genuine original Cummins spare parts
• 7/24 hours Troubleshoot Service: Our expert Parts and Technician team is ready and waiting to answer any questions or concerns you might have.

9. Compliance & Standards:

• ISO8528, GB/T2820, ISO3046, BS4999, BS5514, BS5000, EN12601:2001, EN60034- 22:1997, EN60204-1:2006, ISO9001:2000 Quality Management & ISO14001:2004, SGS

10. Load Testing & Package:

• C1100GFS Containerized 1000 kVA Generator Cummins with rigorous testing before delivery, including 25% load, 50% load, 75% load, 100% load, 110% load
• All protection functions testing including over-speed stop, high water temp, low oil pressure, battery charging failure, emergency stop, etc.

11. Versatility:

• Ideal for a wide range of applications including hospitals, data centers, industrial plants, and commercial facilities.
• Capable of operating under various environmental conditions.

12. Safety and Protection:

• Equipped with multiple safety features such as overload protection, low oil shutdown, and emergency stop.
• Designed to meet international safety standards.

13. Remote Monitoring:

• Capable of remote monitoring and control, allowing operators to manage the generator from a distance.
• Supports integration with building management systems (BMS) for enhanced oversight.

14. Customizable Options:

• Available with various optional features and accessories to tailor the generator to specific requirements.
• Options include weatherproof enclosures, extended fuel tanks, and more.

These features make the Containerized 1000 kVA Generator Cummins a reliable, efficient, and versatile choice for providing backup power in critical applications.
